Application
CATV System
Telecommunications
Optical Networks
FTTH(Fiber To The Home)
High Speed Transmission Systems
Testing Instruments
Date Center
Features
Various Connector Type Available
Low Back reflection Loss
Compact Size
Low Insertion Loss
High Return Loss
Diameter:0.9mm,2.0mm,3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available(For Simplex or Duplex)
Technical Specification
Fiber Optic Performance
Parameter | Single-mode | Multi-mode |
Elite Insertion Loss | ≤0.35dB | ≤0.35dB |
Standard Insertion Loss | ≤0.60dB | ≤0.75dB |
Return Loss | ≥65dB | ≥50dB |
Working Temperature | -40℃~﹢85℃ | -40℃~﹢85℃ |
Repeatability | ≤0.20dB | ≤0.20dB |
Interchangeability | ≤0.20dB | ≤0.20dB |
Durability | 1000 matings ≤0.20dB | 1000 matings ≤0.20dB |
Humidity | 75℃,RH 95% ≤0.30dB | 75℃,RH 95% ≤0.30dB |
Vibration | 10~55Hz(3 Axis) ≤0.20dB | 10~55Hz(3 Axis) ≤0.20dB |
Impact | 1.5m Drop 8 Cycle ≤0.20dB | 1.5m Drop 8 Cycle ≤0.20dB |
SC/LC/FC Connector
Item | Typ* | Max* |
Insertion Loss | ≤0.1dB | ≤0.3dB |
Return Loss | ≥60dB |
Working Temperature | -40℃~﹢85℃ |
Durability | ≤0.20dB Change,500 matings |
Ferrule Hole Size | 125.5 |
Ordering Information

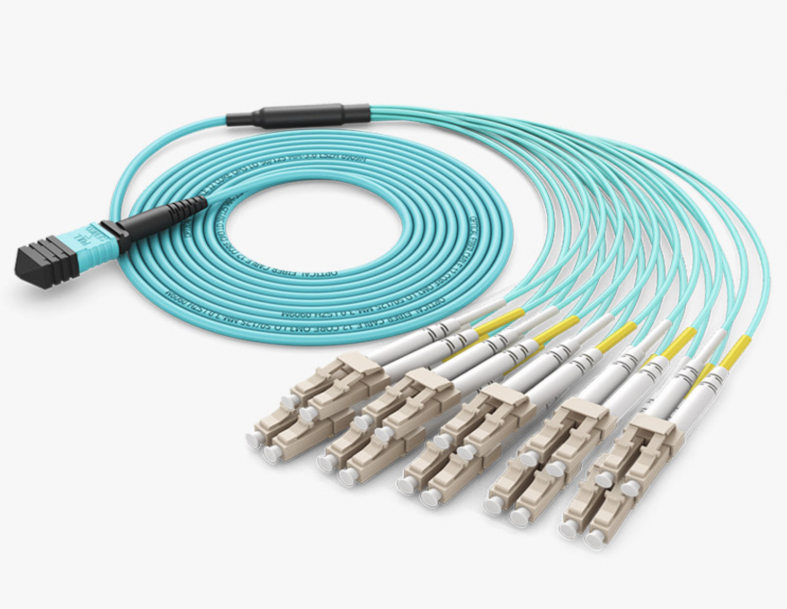

MPO-Name/APC/12F-FC/UPC/SM/φ0.9-L/L1-RJ
Item | Unit | parameter |
1 Connector Type 1# | - | MPO - female*,MPO - male |
2 Endface 1# | - | PC,APC |
3 Fiber Count | - | 2F,4F,8F,12F&24F MT Fiber |
4 Connector Type 2# | - | MPO - female*,MPO - male,FC,SC,ST,MU,LC,E2000 |
5 Endface 2# | - | PC,UPC,APC |
6 Fiber Mode | - | SM(OS2/G657),MM(OM1/OM2/OM3/OM4/OM5) |
7 Cable Diameter | (mm) | Φ2.0，Φ3.0，Φ4.0， |
8 Cable Length | (M) | L=1,2,3……Customize |
9 Pigtall Length | (M) | L=1,2,3……Customize |
10 Cable Type | - | RJ:Jacket Ribbon Cable,RB:bare Ribbon Cable, MIC:250um Mini Round Cable |
