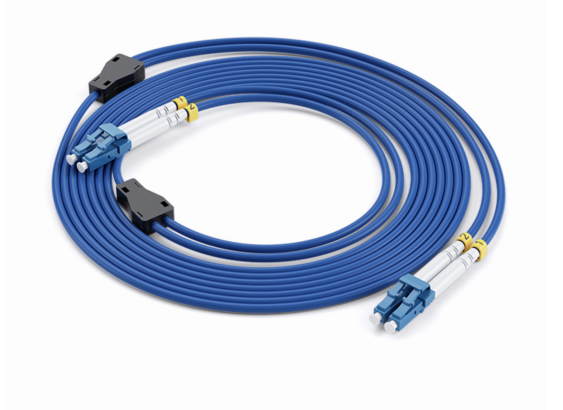

Features
Full Steel armored protection from ceramic ferrule
High tensile resistance & anti-pressure
Strong anti-ultraviolet radiation
High flexibility
Application
FTTH(Fiber To The Home)
Defense communications
Outdoor Emergency
Buildings without protective cabling
Performance Index
Item | Single-Mode | Multi-Mode |
Fiber Diameter | 9/125um | 50/125um,62.5/125um |
Insertion Loss(dB) | PC≤0.30,APC≤0.20 | PC≤0.30 |
Return Loss(dB) | PC≥40，APC≥60 | PC≥40 |
Insert - Pull Test | 1000 Times ≤0.30dB |
Interchange | ≤0.2dB |
Operating Temperature | -40℃ ~ +80℃ |
Extermal Diameter of Steel Tube | Extermal Diameter of Optical Fiber Cable | Optical Fiber Cable Weight (kg/km) | Maximum Tensile Resistance(N) | Bending Radius | Side Pressure (N/100mm) | Concussion |
Short Term | Long Term | Dynamic | static |
Φ1.75 | Φ3.0 | 15.5 | 500 | 300 | 29 | 14.5 | 3500 | 10.0J |
Φ1.40 | 10.8 | 15 | 10 | 3500 |
Φ0.90 | 9.2 | 12 | 8 | 4500 |
Ordering Information
Type | EndFace | Connector Type | Cable Length | Fiber Core | Fiber Mode |
Steel Armored | PC/APC | SC/LC/FC/ST/MU | 1m/2m/3m… | Simplex/Duplex | SM/MM |
