LC Patch Cord
    发布时间: 2025-10-14 09:06

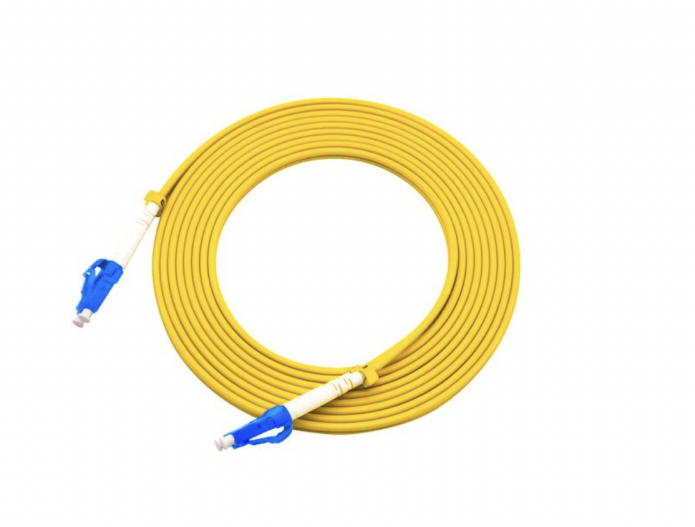

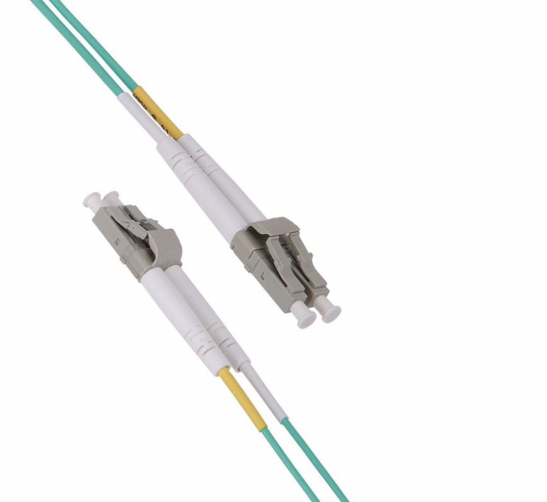

LC Patch Cord

Features

Ceramic Ferrules Connectors

Low Insertion Loss,High Return Loss

Excellent mechanical endurance

High Credibility and stability

Good in repeatability and exchangeability

100% Insertion,Return Loss, Endface and Interference Inspection

High dense spaces

Comply with Telcordia GR-326-CORE specification and RoHS standard

Technical Specification

Item

Single-Mode

Multi-Mode

Fiber Diameter

9/125um

50/125um,62.5/125um

Insertion Loss(dB)

PC0.30,APC0.20

PC0.30

Return Loss(dB)

PC40APC60

PC40

Insert - Pull Test

1000 Times 0.30dB

Interchange

0.2dB

Operating Temperature

-40 ~ +80

Tensile Resistance

6Kgf

Ordering Information

Type

EndFace

Connector Type

Fiber Mode

LC

PC/UPC/APC

SC or LC

SM/MM/OM3/OM4
